斜葉槳式攪拌器
本公司生產近30類，計140多種攪拌器，從最常見的（包括已有的HB5標準，SB90標準各種攪拌器）到各種復雜形狀或特殊用途的攪拌器?？砂碒/T2123-91標準的各種規格尺寸系列制造，也可根據用戶生產工藝需求，代為設計制造各種特殊要求、特殊規格或特殊用途的攪拌器。
攪拌器型號標注方法：
|
|
| 材料代號 | |
| 攪拌器軸孔徑 | |
| 攪拌器的外徑， | |
| 攪拌器型式代號 |
斜葉槳式攪拌器

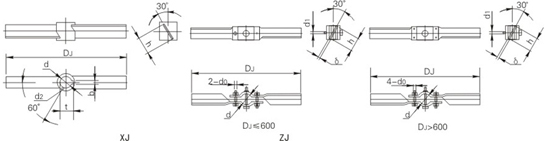

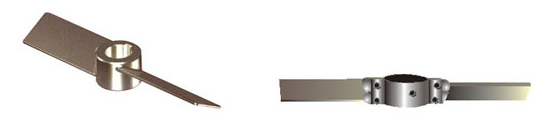

斜葉整體槳式XJ、斜葉可拆槳式ZJ
此攪拌器槳葉可成24°、45°或60°傾角，有軸向分流，徑向分流，流型比平直葉槳式復雜，排出能量比平直槳高，綜合效果更好，適用過程相同，因此應用頻率比平直葉槳式高，運行條件同平直葉槳式。
24小時服務電話: 李先生 13951580222 方小姐 15251425679 郭小姐 15251425680 陳小姐 13812062323 謝小姐 18915322345
斜葉槳式攪拌器主要尺寸
| DJ | d | h | d1 | 螺栓do | 銷軸φ | d2 | b | t | N/n不大于 | δ | 重量 |
| 不銹鋼、碳鋼 | |||||||||||
| 250 | 25 | 35 | 50 | M10 | 6 | M6 | 8 | 28.3 | 0.0035 | 3/4 | 0.67/0.69 |
| 280 | 30 | 35 | 60 | 8 | 33.3 | 0.005 | 4/6 | 0.83/0.84 | |||
| 320 | 30 | 40 | 60 | 8 | 33.3 | 0.005 | 4/6 | 0.9/0.11 | |||
| 350 | 30 | 40 | 70 | M12 | 8 | M8 | 8 | 33.3 | 0.006 | 6/8 | 1.1/1.38 |
| 35 | 10 | 38.3 | |||||||||
| 400 | 35 | 75 | 10 | 38.3 | 0.01 | 8/10 | 1.55/1.86 | ||||
| 40 | 12 | 43.3 | 1.56/1.88 | ||||||||
| 450 | 40 | 50 | 80 | 10 | 12 | 43.3 | 0.015 | 10/10 | 2.53/2.98 | ||
| 45 | 14 | 48.8 | |||||||||
| 500 | 40 | 50 | 80 | M12 |
10 12 |
12 | 43.3 | 0.015 | 10/10 | 2.53/2.98 | |
| 45 | 14 | 48.8 | 2.72/2.98 | ||||||||
| 550 | 40 | 80 | 12 | 43.3 | 2.86/2.98 | ||||||
| 45 | 14 | 48.8 | 2.96/2.98 | ||||||||
| 600 | 45 | 60 | 90 | 14 | 48.8 | 0.026 | 10/12 | 3.7/4.36 | |||
| 55 | 16 | 593.3 | |||||||||
| 700 | 50 | 70 | 100 | M10 | 14 | 53.8 | 0.04 | 12/14 | 6.14/6.89 | ||
| 60 | 18 | 64.4 | |||||||||
| 850 | 55 | 90 | 110 | 16 | 59.3 | 0.053 | 12/14 | 9.13/10.43 | |||
| 70 | 16 | 20 | 74.9 | ||||||||
| 950 | 65 | 110 | 12 | 16 | 29.3 | 9.83/11.52 | |||||
| 70 | 16 | 20 | 74.9 | ||||||||
| 1100 | 60 | 110 | 120 | M16 | 12 | 18 | 64.4 | 0.07 | 12/14 | 13.58/15.85 | |
| 75 | 16 | 20 | 79.9 | ||||||||
| 1200 | 70 | 120 | 130 | 20 | 74.9 | 0.1 | 14/16 | 18.81/21.27 | |||
| 80 | 22 | 85.4 | 18.95/21.35 | ||||||||
| 1400 | 75 | 140 | 130 | 20 | 79.9 | 0.12 | 14/16 | 24.93/28.23 | |||
| 80 | 22 | 85.4 | 25.09/28.41 | ||||||||
| 1500 | 80 | 150 | 140 | M20 | 20 | M12 | 22 | 85.4 | 0.23 | 14/16 | 30.19/34.5 |
| 85 | 22 | 90.4 | |||||||||
| 1700 |
85 |
180 | 150 | 22 | 90.4 | 0.27 | 14/16 | 50.93/58.5 | |||
| 90 | 25 | 95.4 | |||||||||
| 1800 | 90 | 180 | 160 | 25 | 95.4 | 0.38 | 16/18 | 65.24/73.4 | |||
| 100 | 28 | 106.4 | |||||||||
| 2000 | 95 | 200 | 160 | M16 | 25 | 99.4 | 0.38 | 16/18 | 71.56/80.5 | ||
| 100 | 28 | 106.4 | |||||||||
| 2100 | 95 | 220 | 170 | 25 | 99.4 | 0.5 | 16/18 | 78.13/87.9 | |||
| 110 | 28 | 116.4 | |||||||||
| 2300 | 100 | 240 | 180 | M24 | 24 | 28 | 106.4 | 0.65 | 18/20 | 89.64/99.6 | |
| 120 | 32 | 127.4 | |||||||||
| 2500 | 110 | 250 | 190 | 28 | 116.4 | 0.83 | 18/20 | 104.22/115.8 | |||
| 130 | 32 | 137.4 | |||||||||
| 2800 | 120 | 280 | 200 | M24 | 24 | M20 | 32 | 127.4 | 1.0 | 20/22 | 142/158 |
| 140 | 36 | 148.4 | |||||||||
| 3150 | 130 | 315 | 210 | M24 | 24 | M20 | 32 | 137.4 | 1.2 | 20/22 | 178/198 |
| 150 | 36 | 158.4 | |||||||||
| 3550 | 140 | 355 | 220 | M24 | 24 | M20 | 36 | 148.4 | 1.5 | 20/22 | 224/249 |
| 160 | 40 | 169.4 | |||||||||
備注：攪拌器內孔可根據用戶要求制作，輪轂高度一般與內孔相一致。
